ESP32 Beeminder Urgency Display

jlr13 · July 2, 2025, 10:41am

I built/programmed a WiFi-connected LED matrix that monitors my Beeminder goals and provides escalating visual alerts throughout the day. Code and post mostly written by Claude.

The Concept

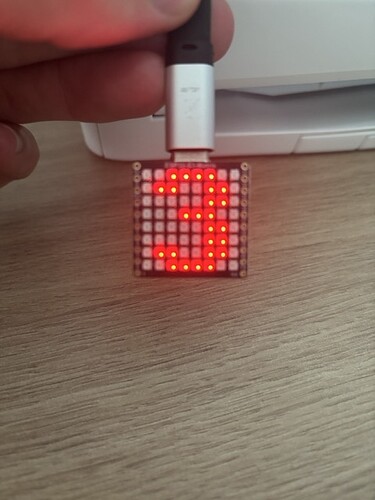

The display shows the number of urgent goals (derailing within 24 hours) as a red digit on an 8×8 LED matrix. The genius is in the time-based escalation:

Morning to Evening (7 AM - 7 PM)

Displays a solid red number showing urgent goal count
Brightness increases exponentially from barely visible (5) to full brightness (30)
Creates gentle but growing awareness throughout the day

Evening Escalation (7 PM - Midnight)

Switches to blinking the urgent goal number
Blink frequency increases linearly from slow (2 seconds) to frantic (200ms)
Maximum psychological pressure right when you need to act!

Sleep Mode (Midnight - 7 AM)

Display turns off completely
No distractions during sleep hours

No Urgent Goals

Display stays off

Hardware Setup

Single component needed:

Waveshare ESP32-S3-Matrix board (~$5-10)
USB-C cable for power/programming

That’s it! The ESP32-S3-Matrix has everything built-in:

ESP32-S3 microcontroller
8×8 WS2812B RGB LED matrix
All wiring done for you
Compact all-in-one design

Zero assembly required - just plug in USB-C and start coding!

Software Features

Beeminder API Integration - Checks goals every 20 minutes
NTP Time Sync - Accurate time-based escalation
WiFi Auto-Reconnect - Reliable operation
Customizable Time Zones - Works anywhere
Visual Goal Counter - Shows 1-9 urgent goals clearly

The Psychology

This hits the perfect sweet spot between helpful and annoying:

Morning awareness without being distracting
Gradual escalation that builds urgency naturally
Maximum pressure during prime “do the thing” hours
Respectful sleep with no late-night harassment

Setup Process

Get your Beeminder auth token from Beeminder API Reference
Flash the Arduino code to your ESP32-S3-Matrix via USB-C (I can share the full code)
Configure your WiFi credentials and Beeminder username in the code
Set your timezone and preferred escalation hours
Mount somewhere visible - I put mine on my desk

The whole setup took me about 30 minutes including coding time. No soldering, no wiring, no breadboards (Although I did initially set it all up using a breadboard and a simple led diode until I found out about the esp32 chip with integrated led matrix…).

philip · July 2, 2025, 12:23pm

Great stuff. I think you have fewer goals than me!

PS: envoyé du donjon du Louvre, en échappant de la chaleur.

sheik · July 3, 2025, 8:39am

Wow, really cool! It’s very small, so cute!
I wonder if there is a way to put a small battery and a casing to put it on a desk…

dreev · July 4, 2025, 6:57am

Nice work! I’ll take you up on the offer to share the code.

What’s the highest number it can display?

jlr13 · July 4, 2025, 7:31am

Sure no problem, lets see if I can embed it in a post here

Currently highest number is 9 which is more than enough for me, but should be no problem to either have it show something like 9+ for more or even a scrolling number once you need more than 1 digit… Or if you really have many you could use one led per task which would get you up to 64. That would let you encode each tasks status as a color as well

Or you just go for a proper lcd/e-ink display (like this) directly.

Code

/*
 * ESP32-S3 RGB Matrix Beeminder Status Display (Time-Based Escalation)
 * Monitors Beeminder goals and displays escalating status via 8x8 RGB LED matrix
 * Escalates brightness during day, then blinking frequency in evening
 */

#include <WiFi.h>
#include <HTTPClient.h>
#include <ArduinoJson.h>
#include <time.h>
#include <FastLED.h>

// Configuration - MODIFY THESE VALUES
const char* WIFI_SSID = "";
const char* WIFI_PASSWORD = "";
const char* BEEMINDER_USERNAME = "";
const char* BEEMINDER_AUTH_TOKEN = "";

// NTP Server for time synchronization
const char* ntpServer = "pool.ntp.org";
const long gmtOffset_sec = 1*60*60;     // Adjust for your timezone (0 = UTC)
const int daylightOffset_sec = 1*60*60; // Adjust for daylight saving

// Time-based escalation settings
const int BRIGHTNESS_START_HOUR = 7;   // 7 AM - start brightness escalation
const int ESCALATION_START_HOUR = 19;  // 7 PM - start blinking escalation
const int MAX_ESCALATION_HOUR = 24;    // Midnight - maximum blinking
const int SLEEP_START = 0;
const int SLEEP_END = 7;

// Brightness settings
const int MIN_BRIGHTNESS = 1;
const int MAX_BRIGHTNESS = 10;

// RGB Matrix configuration for Waveshare ESP32-S3-Matrix board
#define LED_PIN 14       // ESP32-S3-Matrix uses GPIO14 for the built-in 8x8 RGB matrix
#define NUM_LEDS 64      // 8x8 = 64 LEDs
#define LED_TYPE WS2812B // Board uses WS2812B RGB LEDs
#define COLOR_ORDER RGB  // Changed from GRB to RGB - board has different color order

CRGB leds[NUM_LEDS];

// Timing constants
const unsigned long CHECK_INTERVAL = 1 * 60 * 1000; // 20 minutes in milliseconds

// Global variables
unsigned long lastBeeminderCheck = 0;
unsigned long lastAnimation = 0;
int urgentGoals = 0;
int displayMode = 0; // 0=off, 1=solid_number, 2=blinking_number
unsigned long animationInterval = 1000;
int animationStep = 0;
int currentBrightness = MIN_BRIGHTNESS;

// Color definitions
CRGB COLOR_OFF = CRGB::Black;
CRGB COLOR_URGENT = CRGB::Red;

void setup() {
  Serial.begin(115200);
  delay(1000);

  Serial.println("Starting ESP32-S3 RGB Matrix Beeminder Status Display...");

  // Initialize FastLED
  FastLED.addLeds<LED_TYPE, LED_PIN, COLOR_ORDER>(leds, NUM_LEDS).setCorrection(TypicalLEDStrip);
  FastLED.setBrightness(MIN_BRIGHTNESS);

  // Test the matrix
  testMatrix();

  // Connect to WiFi
  connectToWiFi();

  // Initialize time
  configTime(gmtOffset_sec, daylightOffset_sec, ntpServer);
  Serial.println("Getting time from NTP server...");
  delay(2000); // Give time to sync

  // Initial Beeminder check
  checkBeeminderGoals();

  Serial.println("Setup complete!");
}

void loop() {
  unsigned long currentTime = millis();

  // Check Beeminder goals periodically
  if (currentTime - lastBeeminderCheck >= CHECK_INTERVAL) {
    if (WiFi.status() == WL_CONNECTED) {
      checkBeeminderGoals();
    } else {
      Serial.println("WiFi disconnected, attempting reconnection...");
      connectToWiFi();
    }
    lastBeeminderCheck = currentTime;
  }

  // Handle LED animations
  handleMatrixDisplay();

  // Small delay to prevent excessive CPU usage
  delay(50);
}

void testMatrix() {
  Serial.println("Testing RGB Matrix...");

  // Fill with red
  fill_solid(leds, NUM_LEDS, CRGB::Red);
  FastLED.show();
  delay(500);

  // Fill with green
  fill_solid(leds, NUM_LEDS, CRGB::Green);
  FastLED.show();
  delay(500);

  // Fill with blue
  fill_solid(leds, NUM_LEDS, CRGB::Blue);
  FastLED.show();
  delay(500);

  // Clear
  FastLED.clear();
  FastLED.show();

  Serial.println("Matrix test complete!");
}

void connectToWiFi() {
  Serial.println("Connecting to WiFi...");
  WiFi.begin(WIFI_SSID, WIFI_PASSWORD);

  int attempts = 0;
  while (WiFi.status() != WL_CONNECTED && attempts < 20) {
    delay(500);
    Serial.print(".");
    attempts++;
  }

  if (WiFi.status() == WL_CONNECTED) {
    Serial.println("");
    Serial.println("WiFi connected!");
    Serial.print("IP address: ");
    Serial.println(WiFi.localIP());
  } else {
    Serial.println("");
    Serial.println("WiFi connection failed!");
  }
}



void checkBeeminderGoals() {
  Serial.println("Checking Beeminder goals...");

  HTTPClient http;
  String url = String("https://www.beeminder.com/api/v1/users/") +
               BEEMINDER_USERNAME + "/goals.json?auth_token=" + BEEMINDER_AUTH_TOKEN;

  http.begin(url);
  http.addHeader("User-Agent", "ESP32-S3-RGB-Matrix-Beeminder/1.0");

  int httpResponseCode = http.GET();

  if (httpResponseCode == 200) {
    String payload = http.getString();
    parseBeeminderResponse(payload);
  } else {
    Serial.print("HTTP Error: ");
    Serial.println(httpResponseCode);
    Serial.println("Response: " + http.getString());

    // Keep display off on error
    setDisplayMode(0);
  }

  http.end();
}

void parseBeeminderResponse(String jsonResponse) {
  DynamicJsonDocument doc(8192);
  DeserializationError error = deserializeJson(doc, jsonResponse);

  if (error) {
    Serial.print("JSON parsing failed: ");
    Serial.println(error.c_str());
    setDisplayMode(0); // Turn off on error
    return;
  }

  urgentGoals = 0;
  int totalGoals = 0;

  // Get current time using time library
  time_t now;
  time(&now);

  for (JsonObject goal : doc.as<JsonArray>()) {
    String slug = goal["slug"];
    long losedate = goal["losedate"];
    bool queued = goal["queued"];

    totalGoals++;

    // Skip queued goals
    if (queued) {
      continue;
    }

    // Check if goal is urgent (derails within 24 hours)
    long timeUntilDerail = losedate - now;
    if (timeUntilDerail <= 86400) { // 24 hours in seconds
      urgentGoals++;
      Serial.print("URGENT: ");
      Serial.print(slug);
      Serial.print(" derails in ");
      Serial.print(timeUntilDerail / 3600);
      Serial.println(" hours");
    }
  }

  Serial.print("Total goals: ");
  Serial.println(totalGoals);
  Serial.print("Urgent goals: ");
  Serial.println(urgentGoals);

  // Set display pattern based on urgency and time
  updateDisplayBasedOnTimeAndUrgency();
}

void updateDisplayBasedOnTimeAndUrgency() {
  if (urgentGoals == 0) {
    setDisplayMode(0); // Off - no urgent goals
    return;
  }

  // Get current hour
  struct tm timeinfo;
  if (!getLocalTime(&timeinfo)) {
    Serial.println("Failed to obtain time");
    setDisplayMode(1); // Default to solid display if time unavailable
    return;
  }

  int currentHour = timeinfo.tm_hour;
  int currentMinute = timeinfo.tm_min;
  Serial.print("Current time: ");
  Serial.print(currentHour);
  Serial.print(":");
  Serial.println(currentMinute);

  if (SLEEP_START <= currentHour && currentHour < SLEEP_END) {
    setDisplayMode(0);
    Serial.println("Sleep time - display off");
    return;
  }

  if (currentHour >= BRIGHTNESS_START_HOUR && currentHour < ESCALATION_START_HOUR) {
    // Brightness escalation period (7 AM to 7 PM)
    calculateBrightness(currentHour, currentMinute);
    setDisplayMode(1); // Solid number display
    animationInterval = 0; // No animation, just solid display
    Serial.print("Brightness escalation period - brightness: ");
    Serial.println(currentBrightness);

  } else if (currentHour >= ESCALATION_START_HOUR) {
    // Blinking escalation period (7 PM to midnight)
    currentBrightness = MAX_BRIGHTNESS; // Max brightness during blinking period
    FastLED.setBrightness(currentBrightness);

    setDisplayMode(2); // Blinking number display
    calculateBlinkingSpeed(currentHour, currentMinute);
    Serial.print("Blinking escalation period - interval: ");
    Serial.print(animationInterval);
    Serial.println("ms");

  } else {
    // Between midnight and 7 AM - display off
    setDisplayMode(0);
    Serial.println("Night time - display off");
  }
}

void calculateBrightness(int hour, int minute) {
  // Calculate time progress from BRIGHTNESS_START_HOUR to ESCALATION_START_HOUR
  float totalMinutes = (ESCALATION_START_HOUR - BRIGHTNESS_START_HOUR) * 60.0;
  float currentMinutes = (hour - BRIGHTNESS_START_HOUR) * 60.0 + minute;
  float progress = currentMinutes / totalMinutes;

  if (progress > 1.0) progress = 1.0;
  if (progress < 0.0) progress = 0.0;

  // Exponential brightness increase: y = MIN + (MAX-MIN) * progress^2
  currentBrightness = MIN_BRIGHTNESS + (MAX_BRIGHTNESS - MIN_BRIGHTNESS) * progress * progress;

  if (currentBrightness > MAX_BRIGHTNESS) currentBrightness = MAX_BRIGHTNESS;
  if (currentBrightness < MIN_BRIGHTNESS) currentBrightness = MIN_BRIGHTNESS;

  FastLED.setBrightness(currentBrightness);
}

void calculateBlinkingSpeed(int hour, int minute) {
  // Calculate time progress from ESCALATION_START_HOUR to MAX_ESCALATION_HOUR
  float totalMinutes = (MAX_ESCALATION_HOUR - ESCALATION_START_HOUR) * 60.0;
  float currentMinutes = (hour - ESCALATION_START_HOUR) * 60.0 + minute;
  float progress = currentMinutes / totalMinutes;

  if (progress > 1.0) progress = 1.0;
  if (progress < 0.0) progress = 0.0;

  // Linear increase in blinking frequency
  // Start with slow blink (2 seconds), end with fast blink (200ms)
  int maxInterval = 2000; // 2 seconds
  int minInterval = 200;  // 200ms

  animationInterval = maxInterval - (maxInterval - minInterval) * progress;
}

void setDisplayMode(int mode) {
  displayMode = mode;
  animationStep = 0; // Reset animation
  Serial.print("Display mode set to: ");
  switch (mode) {
    case 0: Serial.println("Off"); break;
    case 1: Serial.println("Solid number"); break;
    case 2: Serial.println("Blinking number"); break;
  }
}

void handleMatrixDisplay() {
  unsigned long currentTime = millis();

  // Handle solid display (no animation timing needed)
  if (displayMode == 1) {
    displaySolidNumber();
    FastLED.show();
    return;
  }

  // Handle animated displays
  if (displayMode == 2 && currentTime - lastAnimation >= animationInterval) {
    lastAnimation = currentTime;
    displayBlinkingNumber();
    FastLED.show();
    return;
  }

  // Handle off state
  if (displayMode == 0) {
    displayOff();
    FastLED.show();
    return;
  }
}

void displayOff() {
  FastLED.clear();
}

void displaySolidNumber() {
  FastLED.clear();

  if (urgentGoals == 0) {
    return;
  }

  int numberToShow = min(urgentGoals, 9); // Cap at 9
  displayNumber(numberToShow, COLOR_URGENT);
}

void displayBlinkingNumber() {
  if (animationStep % 2 == 0) {
    // Show number
    displaySolidNumber();
  } else {
    // Hide number
    FastLED.clear();
  }

  animationStep++;
}

// Utility function to get LED index from row/col
int getIndex(int row, int col) {
  if (row < 0 || row >= 8 || col < 0 || col >= 8) {
    return -1; // Invalid position
  }
  return row * 8 + col;
}

// Display a number (0-9) on the 8x8 matrix
void displayNumber(int number, CRGB color) {
  // 8x8 digit patterns - each number is defined as a 2D array
  // 1 = LED on, 0 = LED off

  bool patterns[10][8][8] = {
    // 0
    {
      {0,0,1,1,1,1,0,0},
      {0,1,1,0,0,1,1,0},
      {0,1,0,0,0,0,1,0},
      {0,1,0,0,0,0,1,0},
      {0,1,0,0,0,0,1,0},
      {0,1,0,0,0,0,1,0},
      {0,1,1,0,0,1,1,0},
      {0,0,1,1,1,1,0,0}
    },
    // 1
    {
      {0,0,0,1,1,0,0,0},
      {0,0,1,1,1,0,0,0},
      {0,0,0,1,1,0,0,0},
      {0,0,0,1,1,0,0,0},
      {0,0,0,1,1,0,0,0},
      {0,0,0,1,1,0,0,0},
      {0,0,0,1,1,0,0,0},
      {0,1,1,1,1,1,1,0}
    },
    // 2
    {
      {0,0,1,1,1,1,0,0},
      {0,1,1,0,0,1,1,0},
      {0,0,0,0,0,1,1,0},
      {0,0,0,0,1,1,0,0},
      {0,0,0,1,1,0,0,0},
      {0,0,1,1,0,0,0,0},
      {0,1,1,0,0,0,0,0},
      {0,1,1,1,1,1,1,0}
    },
    // 3
    {
      {0,0,1,1,1,1,0,0},
      {0,1,1,0,0,1,1,0},
      {0,0,0,0,0,1,1,0},
      {0,0,0,1,1,1,0,0},
      {0,0,0,0,0,1,1,0},
      {0,0,0,0,0,1,1,0},
      {0,1,1,0,0,1,1,0},
      {0,0,1,1,1,1,0,0}
    },
    // 4
    {
      {0,0,0,0,1,1,0,0},
      {0,0,0,1,1,1,0,0},
      {0,0,1,1,1,1,0,0},
      {0,1,1,0,1,1,0,0},
      {0,1,1,1,1,1,1,0},
      {0,0,0,0,1,1,0,0},
      {0,0,0,0,1,1,0,0},
      {0,0,0,0,1,1,0,0}
    },
    // 5
    {
      {0,1,1,1,1,1,1,0},
      {0,1,1,0,0,0,0,0},
      {0,1,1,0,0,0,0,0},
      {0,1,1,1,1,1,0,0},
      {0,0,0,0,0,1,1,0},
      {0,0,0,0,0,1,1,0},
      {0,1,1,0,0,1,1,0},
      {0,0,1,1,1,1,0,0}
    },
    // 6
    {
      {0,0,1,1,1,1,0,0},
      {0,1,1,0,0,1,1,0},
      {0,1,1,0,0,0,0,0},
      {0,1,1,1,1,1,0,0},
      {0,1,1,0,0,1,1,0},
      {0,1,1,0,0,1,1,0},
      {0,1,1,0,0,1,1,0},
      {0,0,1,1,1,1,0,0}
    },
    // 7
    {
      {0,1,1,1,1,1,1,0},
      {0,0,0,0,0,1,1,0},
      {0,0,0,0,1,1,0,0},
      {0,0,0,0,1,1,0,0},
      {0,0,0,1,1,0,0,0},
      {0,0,0,1,1,0,0,0},
      {0,0,1,1,0,0,0,0},
      {0,0,1,1,0,0,0,0}
    },
    // 8
    {
      {0,0,1,1,1,1,0,0},
      {0,1,1,0,0,1,1,0},
      {0,1,1,0,0,1,1,0},
      {0,0,1,1,1,1,0,0},
      {0,1,1,0,0,1,1,0},
      {0,1,1,0,0,1,1,0},
      {0,1,1,0,0,1,1,0},
      {0,0,1,1,1,1,0,0}
    },
    // 9
    {
      {0,0,1,1,1,1,0,0},
      {0,1,1,0,0,1,1,0},
      {0,1,1,0,0,1,1,0},
      {0,1,1,0,0,1,1,0},
      {0,0,1,1,1,1,1,0},
      {0,0,0,0,0,1,1,0},
      {0,1,1,0,0,1,1,0},
      {0,0,1,1,1,1,0,0}
    }
  };

  // Display the pattern
  if (number >= 0 && number <= 9) {
    for (int row = 0; row < 8; row++) {
      for (int col = 0; col < 8; col++) {
        if (patterns[number][row][col] == 1) {
          int index = getIndex(row, col);
          if (index >= 0) {
            leds[index] = color;
          }
        }
      }
    }
  }
}

jlr13 · July 4, 2025, 7:34am

Thanks, yes its super small!

I think that could be done, although you’d want to optimize the code to be more efficient than it is currently (in particular I think you can tell the esp32 chip to sleep in between operations which I’m not doing currently). I just have it dangling by a usb cable which works fine for me right now

Topic		Replies	Views
e-Ink Beeminder Dashboard Tech	95	7751	May 7, 2020
IFTTT Pre-Launch Akrasia	49	8147	May 8, 2015
How to get a notification or trigger when my goals are NOT beemergencies Tech	7	902	October 2, 2019
Suggestion: different notification as deadline approaches Bugabee	1	908	April 4, 2016
Using a widget to remind me to finish my beeminders. Akrasia	2	304	October 19, 2022
